Additional information
- Brand: Pioneer
- Model: WYT036GLFI19RL
- Cooling Rated Capacity: 36000 BTU (3 Ton ~1500 sqft )
- Heating Rated Capacity: 36000 BTU (3 Ton ~1500 sqft )
- Cooling SEER: 16.00
- Cooling EER(A2): 9.50
- Heating HSPF (Region IV): 9.00
- Power Supply: 208-230V~60Hz, 1Ph
- Pipe line: 1/4''-5/8''
- Refrigerant Type: R-410A
- Inverter: Yes

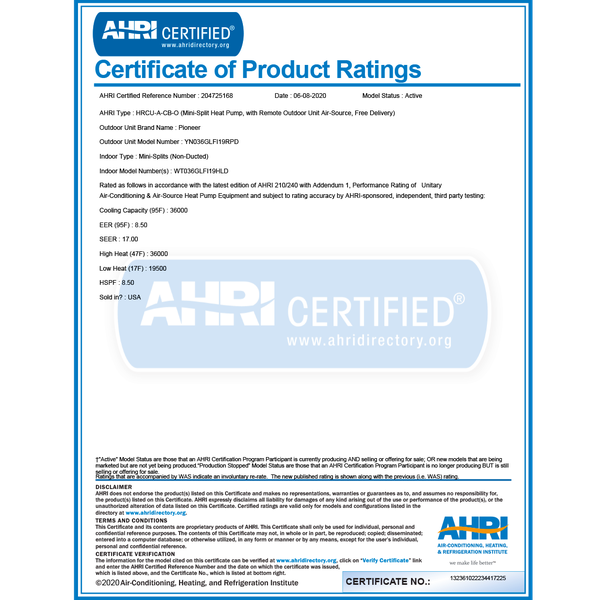

- Certifications: AHRI, ETL
- Indoor unit:
- Model: WT036GLFI19HLD
- Gross weight: 47.40 LB
- Net weight: 38.60 LB
- Packing dimensions(WxDxH in): 48.12 x 12.62 x 15.62
- Product dimensions(WxDxH in): 46.12 x 10.65 x 13.65
- Pipe line: 1/4''-5/8''
- Anticorrosive: BlueFin
- Outdoor unit:
- Model: YN036GLFI19RPD
- Gross weight: 152.10 LB
- Net weight: 136.70 LB
- Packing dimensions(WxDxH in): 40.50 x 17.00 x 36.25
- Product dimensions(WxDxH in): 38.50 x 16.00 x 34.95
- Pipe line: 1/4''-5/8''
- Anticorrosive: BlueFin
Manuals & Documents
