Additional information
- Brand: Daizuki
- Model: DXTH24X426A-20
- Cooling Rated Capacity: 24000 BTU (2 Ton ~1000 sqft )
- Heating Rated Capacity: 24000 BTU (2 Ton ~1000 sqft )
- Cooling SEER2: 19.00
- Cooling EER(A2): 10.00
- Heating HSPF (Region IV): 8.50
- Power Supply: 220-230V~60Hz, 1Ph
- Pipe line: 1/4''-1/2''
- Refrigerant Type: R-410A
- Inverter: Yes
- Wifi: Yes

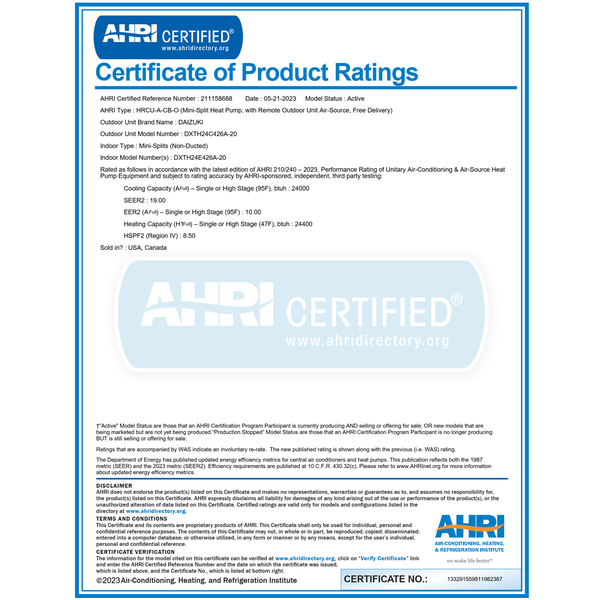

- Certifications: AHRI, ETL
- Indoor unit:
- Model: DXTH24E426A-20
- Gross weight: 45.19 LB
- Net weight: 36.37 LB
- Packing dimensions(WxDxH in): 49.80 x 16.53 x 13.26
- Product dimensions(WxDxH in): 46.22 x 14.96 x 12.65
- Pipe line: 1/4''-1/2''
- Anticorrosive: BlueFin
- Temperature display: F° & C°
- Sound Level (Hi/Med/Lo): 51/46/40 dB(A)
- Air Flow (Turbo/Hi/Med/Lo): 130/125/105/85 CFM
- Room Temperature COOL mode: 5°F - 131°F
- Room Temperature HEAT mode: 13°F - 86°F
- Room Temperature DRY mode: 60.8°F - 87.8°F
- Outdoor unit:
- Model: DXTH24C426A-20
- Gross weight: 101.41 LB
- Net weight: 90.68 LB
- Packing dimensions(WxDxH in): 37.75 x 16.92 x 28.81
- Product dimensions(WxDxH in): 36.25 x 15.65 x 27.30
- Pipe line: 1/4''-1/2''
- Anticorrosive: BlueFin
- Sound Level: 55.5 dB(A)
- Breaker Needed: 20A (double-pole)
- Outdoor Temperature COOL mode: 60°F - 90°F
- Outdoor Temperature HEAT mode: 5°F - 75°F
- Outdoor Temperature DRY mode: 50°F - 90°F
